ZH-M2200-4&6 Folding Gluing Machine
ZH-M2200-4&6 Folding Gluing Machine Straight line-lock bottom-4&6 corner Product Introduction
Product Details
ZH-M2200-4&6 Folding Gluing Machine
1. Characteristics:
- Driving by Ribbed belt, ensure smooth and accurate running.
- Servo-motor driving, stable and power saving.
- Use electric adjust, easy operate.
- Automatic continuous feeding, vibrating motor to keep the feeding stable.
- Automatic counting and kicking, quantity can preset.
- Conveyer pressure adjustable according to the box to ensure best quality.
- The machine with memory function. The first time we finished adjust the box, then it can save carrier position, in future if to do same box, can be find the name auto move the carrier to the right position.
- Folding section with safety light curtain (at operate side and power side).
- With the safety door at alignment/creasing/lock bottom section.
- The machine with remote assistance, it’s helpful for update the program.
2.Main technical parameter:
Model | ZH-M2200-4&6 or 2200-A6 |
Suitable material | A/B/C/E/F/BE flute , Card board250-850gsm |
Max method | Automatic continuous feeding |
Max mechanical speed | 200m/min |

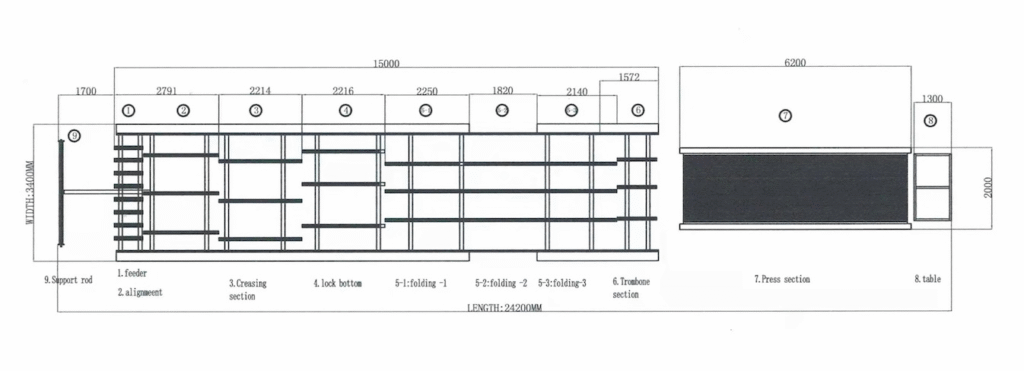

Overall dimension | 24200*3100*2100mm |
Weight | 21T |
Power consumption | 75KW,380V,50/60HZ |
Compressed air | 6 bar,10 m³/h,60 L |

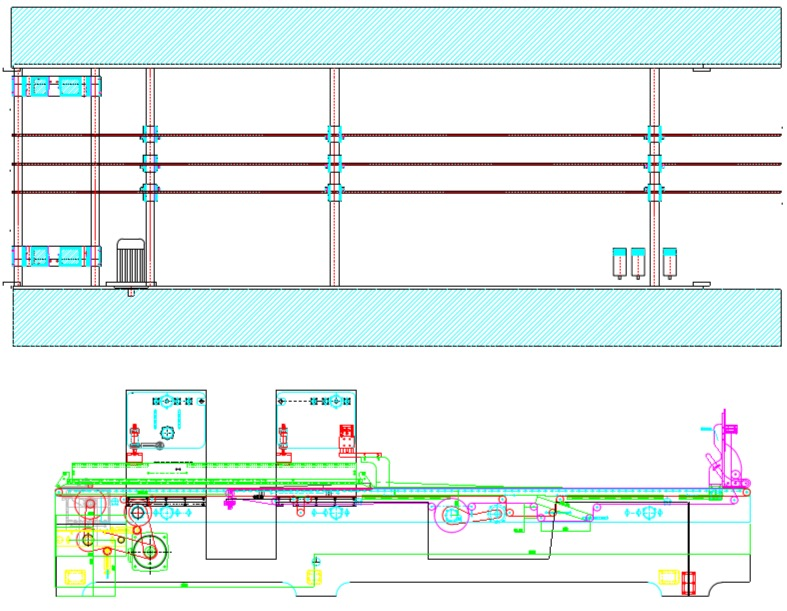

Machine introduction

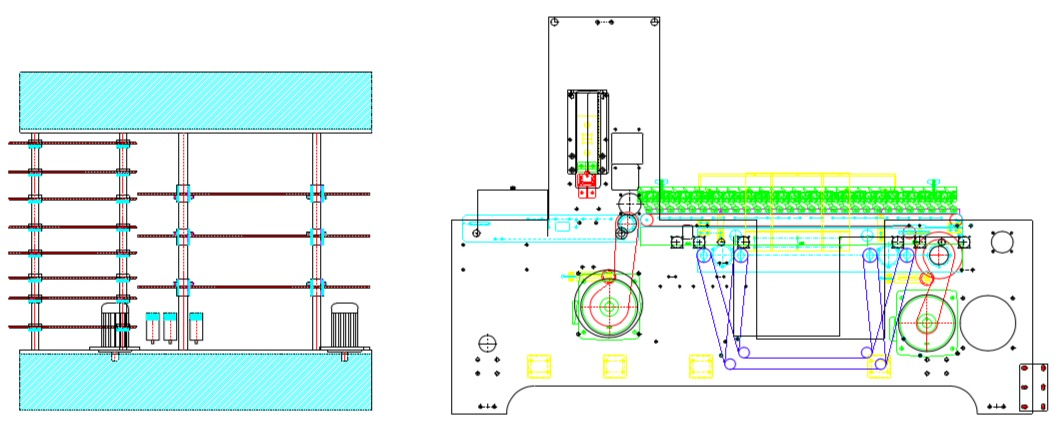

Feeder
- Independent servo motor drive
- Friction feeder. Independently driven byservo-motor, it can be micro-adjustable variable speed controller for even spacing of box blanks, the speed adjust in touch screen.
- 10individual adjustable feed belts (6of which are suction belts)to ensure easy setup and smooth feeding.
- Four supporters sustain the pile of blanks for perfect feeding.
- Adjustable electronic pile vibrator.
- Side guides on left and right side, move the guide by motor.
- three standard feeder gates.
- Monitor install here, can see clearly of press section.

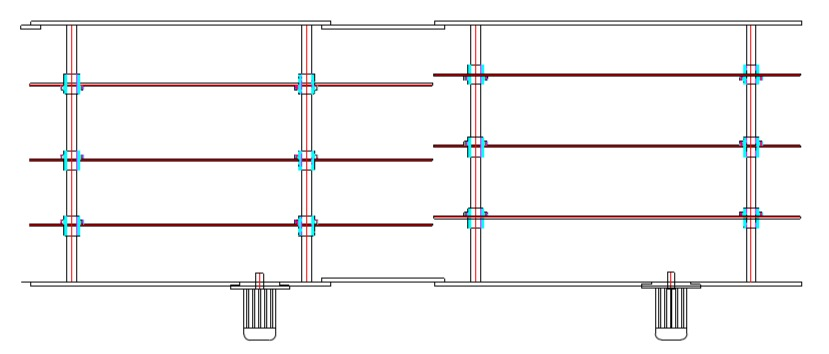

- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.

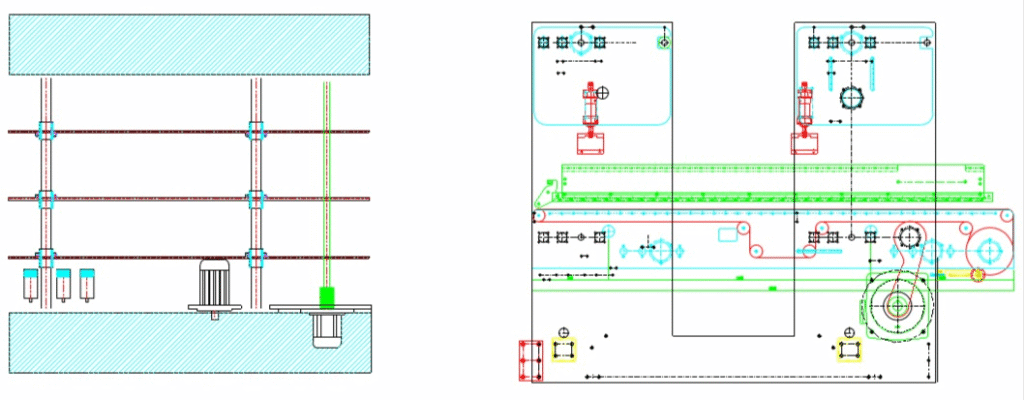

Alignment
- Independent servo motor drive
- The speed can be adjustable in touch screen.
- Three-carrier construction, Use the button to control the carrier movement. The button install on both side in the cover.upper two carrier move up and down by Air cylinder.
- Possibility to register on any side of the machine.
- Correct the skew phenomenon produced by the feeding paper sheet to improve the product accuracy.
- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.

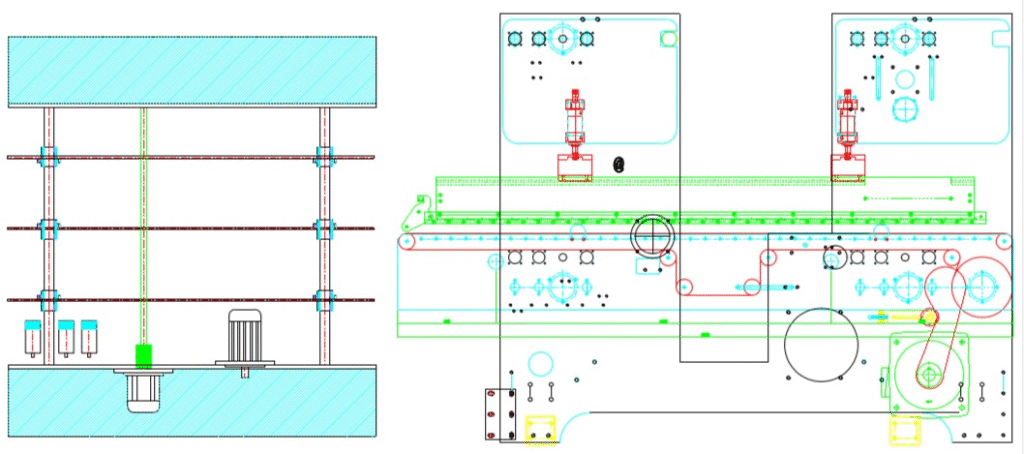

Creasing
- Independent servo motor drive
- The speed can be adjustable in touch screen.
- Three-carrier construction, Use the button to control the carrier movement. The button install on both side in the cover.
- This section is designed to make the box easier to open.
- Self-driven upper belt carrier, the upper carrier move by pneumatic control.
- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.
Lock bottom
- Independent servo motor drive
- The speed can be adjustable in touch screen.
- Three-carrier construction, Use the button to control the carrier movement. The button install on both side in the cover.
- Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
- Complete set of folding hooks and helixes for smooth and accurate folding of front flaps
- Self-driven upper belt carrier, the upper carrier move by pneumatic control.
- Adjustable hook tension.
- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.
Folding Section
- Independent servo motor drive
- The speed can be adjustable in touch screen.
- Three-carrier construction, Use the button to control the carrier movement. The button install on both side in the cover.
- Self-driven upper belt carrier, the upper carrier move by pneumatic control.
- Smooth and accurate folding of 2nd and 4th creases.
- With two servo system to adjust the outward belt, speed regulation to increase folding accuracy.Application for adjusting the box(The top and the bottom are out of alignment)
- Intermediate upper belt also can be outward belt, it can help to do small box, when we run small box, can use intermediate carrier and one of side carrier to fold the box.
- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.
- The lower glue tank it can remove it very easy, no need to remove whole set of lower glue system, just the to move the tank.

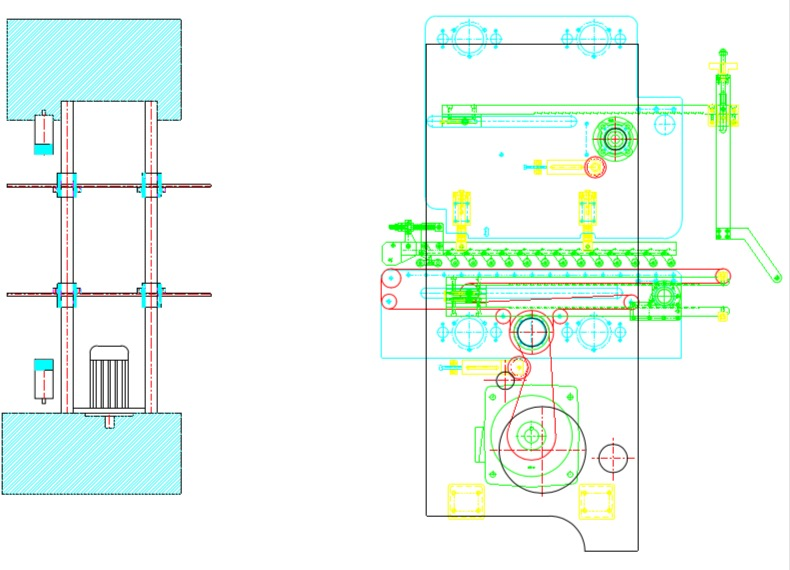

Trombone Section
- Independent servo motor drive
- The speed can be adjustable in touch screen.
- Two-carrier construction, Use the button to control the carrier movement. The button install on both side in the cover.
- Self-driven upper belt carrier
- upper and lower carrier can be slid back and forth by manual.
- Upper and lower drive mechanism for length adjustment.
- Left/right carrier moveable for sheet piling belt is fine adjustable on height according to pile demand, improving the production efficiency.
- The carrier(guide) move by Slide rail, it’s more easy and the service life of the screw is longer, because the slide rail is added, the force of the screw is smaller.
- Standard machine with spank function.
- With squaring at trombone.

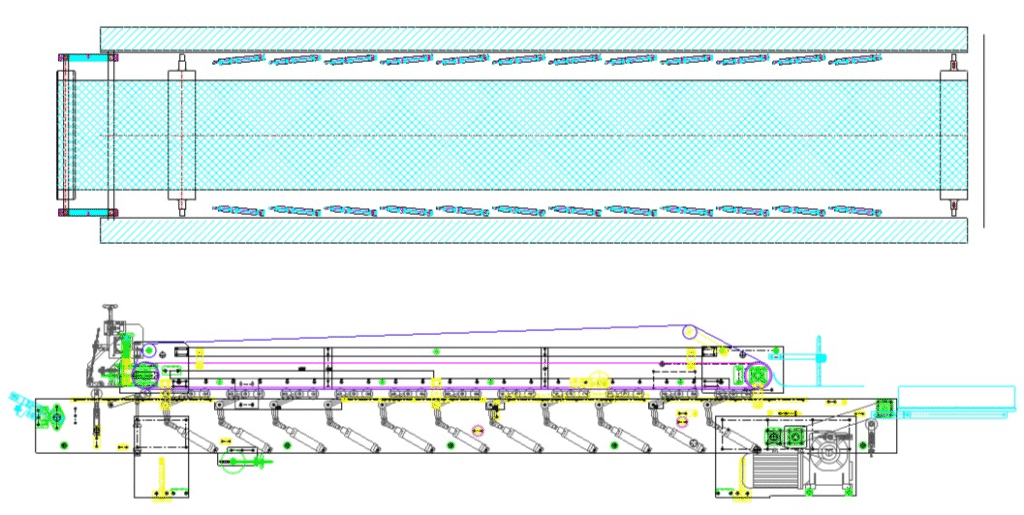

Press Section
- Independently motorized pneumatic press section.
- Upper section moves back and forward through a motorized system, allowing different box length.
- Pneumatic pressure regulation.
- Two operation modes of compressing belt speed:
- Auto – set a single spacing, compressing belt speed is synchronized with the machine speed by ratio. It moves only when sensor detects the box coming.
- Manual – compressing belt keeps moving at a constant speed, regardless of main machine speed.
- Additional sponge belt for extra compression of lower area
4&6-corner device (Back fold )
- Motorized and untimed electronic back folding system with intelligent servo motor technology.
- Servo-motor of back folding device
- Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

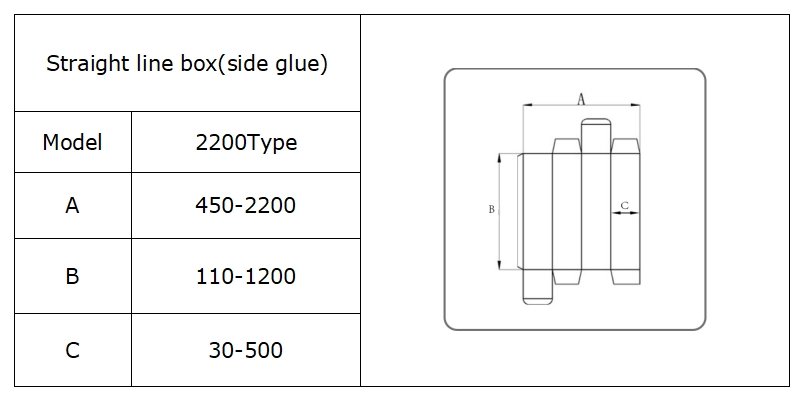

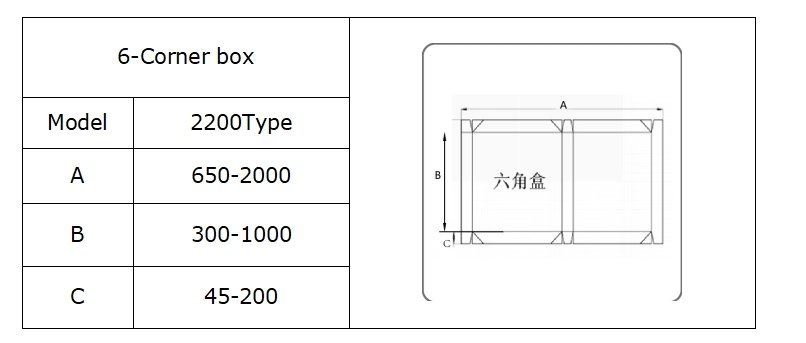

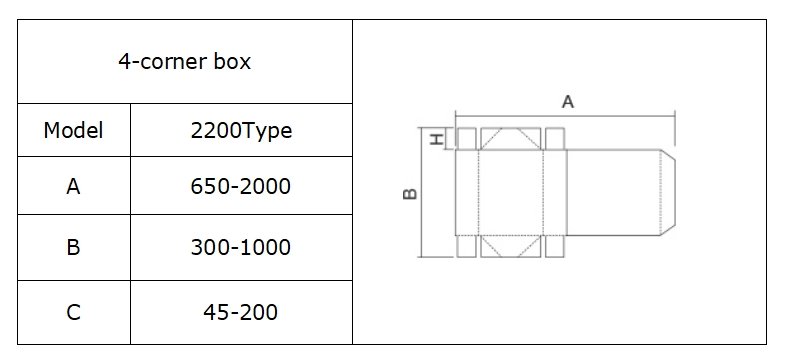

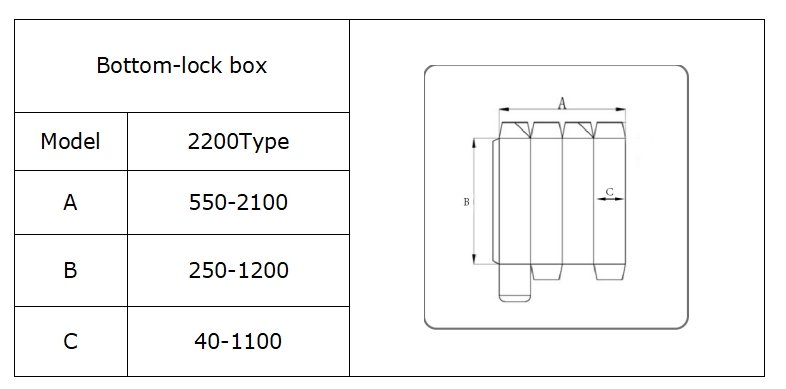

Common type and size
- NOTE:
- For side glue, it can glue 5 layer (like BE, EE..).
- Lock bottom box it only 3 layer (like B, C…), because if for the 5 layer, some corner have 5*5 layer. In this way, the corrugated is easy to burst.
- 4 corner some design it can 5 layer, it depends on the box design, and the size, shape.
- Maximum technical values shown cannot be applied simultaneously.
Samples:
